For e-commerce brands, retailers, and product companies choosing a packaging partner, understanding how corrugated is made isn't just trivia. It directly affects cost, protection, and sustainability decisions down the line.
This article breaks down what actually happens on the plant floor, what factors drive quality and cost, and when custom manufacturing makes sense versus stock options from a supplier like GIVR Packaging.
TL;DR
- Corrugated board bonds a fluted medium between two flat linerboards using starch adhesive
- Manufacturing has two phases: combining (corrugating) and converting (cutting, printing, folding, gluing)
- Board strength depends on flute type, wall count, and paper grade
- Plant type (full-line, sheet, sheet-feeder) affects lead time and customization
- Spec choices and plant type drive lead time, cost, strength, and recyclability—so match structure to product and channel early
What Is the Corrugated Box Manufacturing Process?
Corrugated box manufacturing combines two distinct activities:
- Bonding linerboard and a fluted medium into corrugated board
- Converting flat sheets into finished boxes through cutting, printing, and folding
The goal is structural efficiency: a lightweight material that still cushions and protects products through rough handling, stacking, and transit.
This differs from folding carton or rigid box production. Folding cartons use solid paperboard without a fluted core, so they offer less cushioning but a smoother printing surface. Corrugated trades some print finesse for crush resistance and shock absorption, which is why it dominates shipping applications.
Why the Corrugated Manufacturing Process Is Used in Shipping and Retail
The fluted structure inside corrugated board creates arches that distribute weight and absorb impact. That gives corrugated an outsized strength-to-weight ratio compared to solid materials.
The scale of use backs this up. In 2022, the US corrugated industry manufactured 401 billion square feet of material, equating to roughly 40 billion packages, according to the Fibre Box Association. Those figures show how deeply embedded corrugated is in American shipping and retail.
Shipping and retail environments demand specific performance:
- Crush resistance under stacking pressure in warehouses and trucks
- Consistent stacking strength through multi-leg transit
- A printable surface for branding and barcodes
- Predictable behavior across temperature and humidity swings
Without the right construction, problems show up fast: crushed corners, collapsed pallet stacks, and a spike in damage-related returns. That's expensive twice over: once for the replacement product and again for the lost customer trust.
Because performance requirements vary so much between a bottle of hot sauce and a pallet of industrial parts, matching flute profile and wall construction to the actual shipping environment matters.
GIVR Packaging's structural engineering team, including designers like Lea Wetzel, works through hands-on prototyping (cutting rough drafts on a Kongsberg machine, then refining based on what fails) to get that match right before a box goes into production.
How the Corrugated Box Manufacturing Process Works

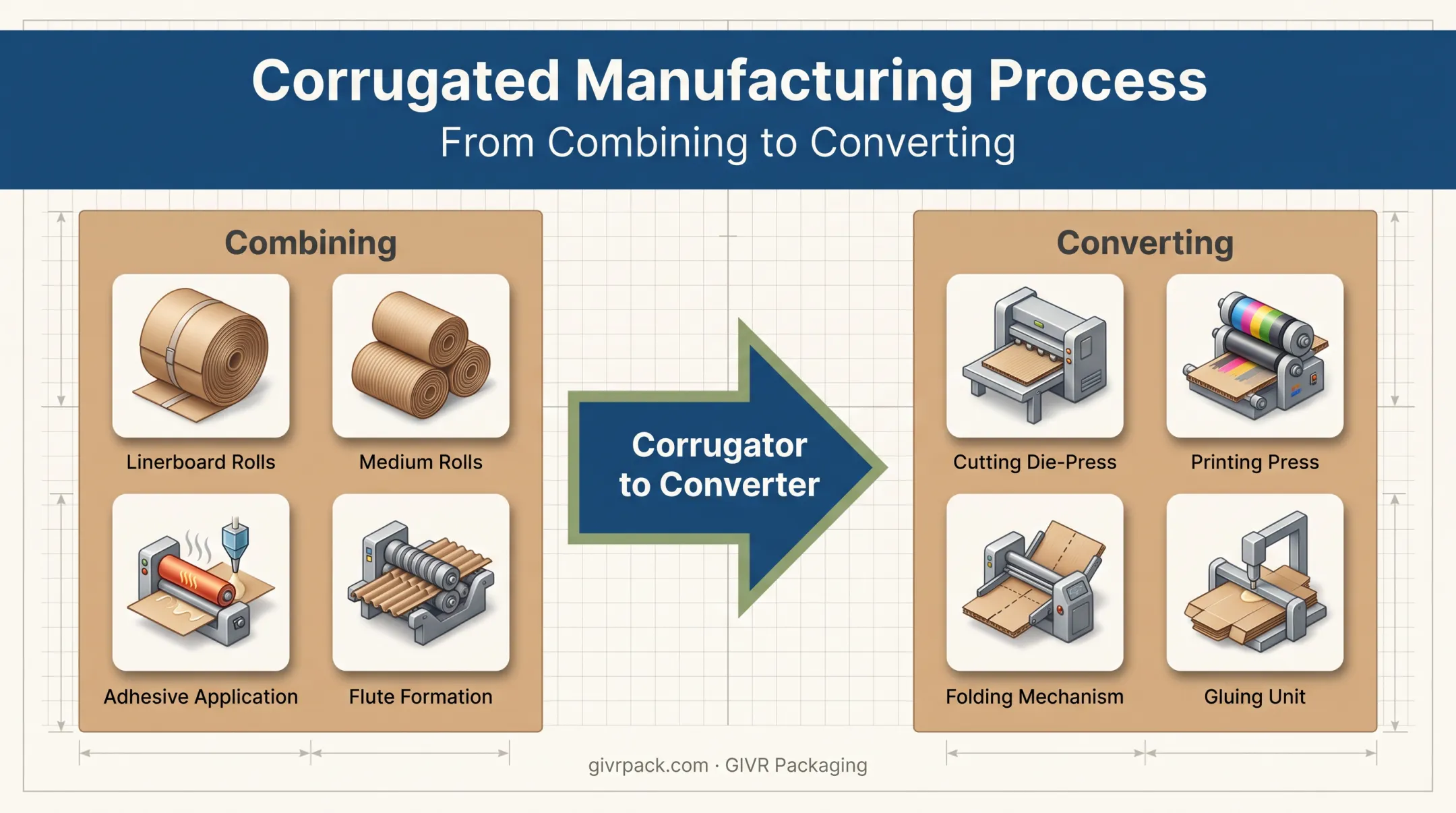

Raw paper rolls become finished box blanks through two connected stages. Combining creates the board itself. Converting cuts, prints, and shapes that board into a box.
Inputs into the process include:
- Linerboard rolls (the flat facing material)
- Medium rolls (the paper that gets shaped into flutes)
- Starch-based adhesive
- Heat, applied during flute formation and bonding

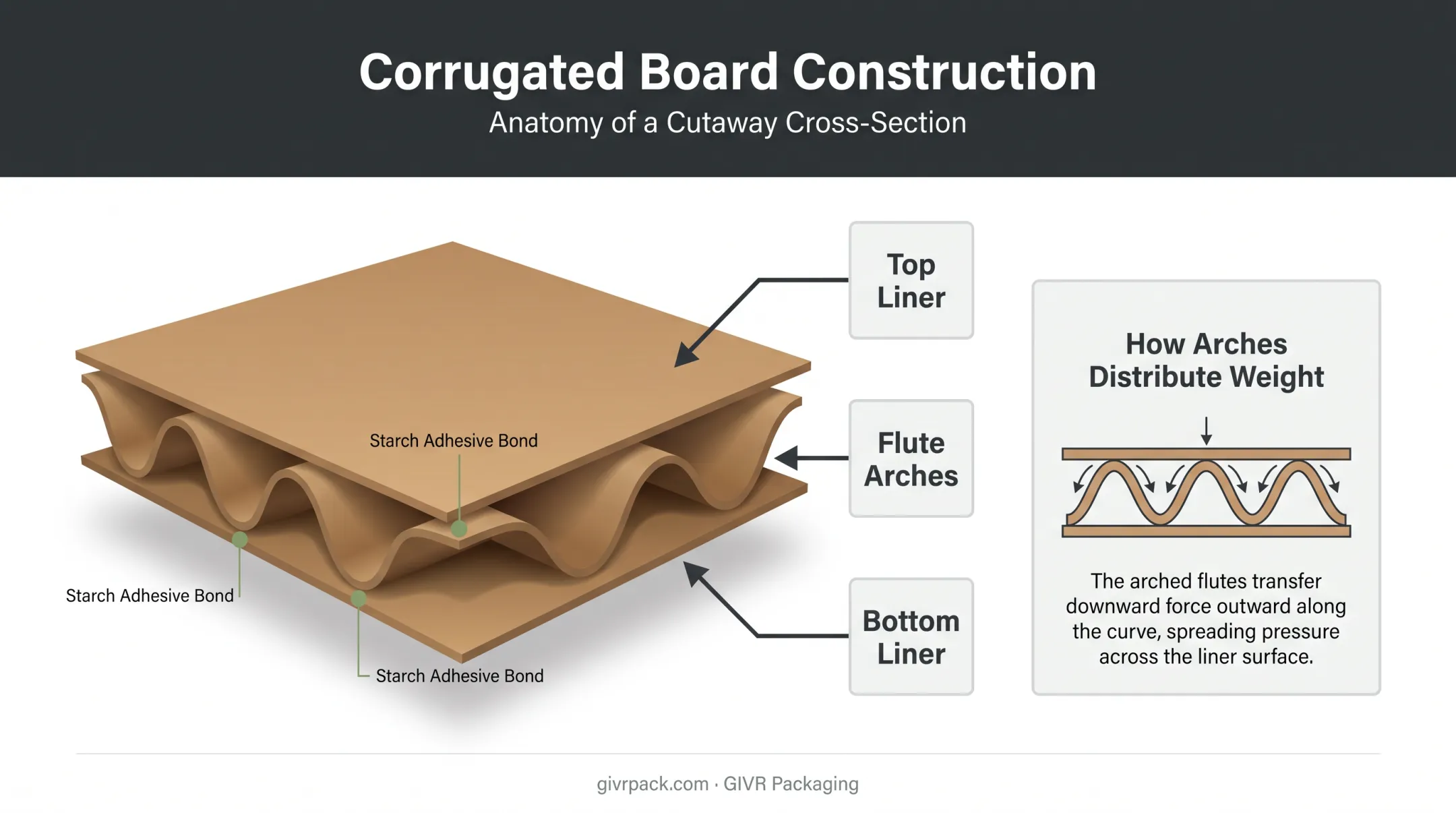

The medium is shaped into arches, or flutes, then bonded between two liner sheets. That's the core transformation: flat rolls become a rigid, cushioned board.
Manufacturers control this process through adhesive temperature, roller pressure, and flute profile selection. Miss any of those, and the bond weakens or the flutes crush before the board reaches converting.
Step 1: Pulp and Paper Preparation
Mills pulp, clean, and press wood fiber—and often recycled paper—into the linerboard and medium rolls that feed the corrugator. Some mills lean on virgin fiber; others blend in more recycled content.
Step 2: Corrugating (Combining)
At the corrugator's wet end, large gear-like rollers heat and shape the medium into flutes. Linerboard stays flat and bonds to the top and bottom of that fluted medium using starch-based adhesive.
At the dry end, the combined board is cut to job-specific sheet sizes and stacked for conveyance to converting.
Step 3: Converting (Cutting, Printing, Folding, Gluing)
Sheets move through one of several converting machines, depending on the job:
- Flexo folder-gluer — cuts, scores, prints, folds, and glues the manufacturer's joint in one pass
- Printer-slotter — cuts, scores, and prints, leaving fold and glue for a later step
- Die cutter — handles complex cuts and scores for custom shapes
- Folder-gluer — folds and glues die-cut blanks that arrive already cut and printed
The finished blanks then move to strapping and, if requested, wrapping and palletizing before shipping out.
Key Factors That Affect the Corrugated Manufacturing Process
Several variables determine how strong, printable, and cost-effective a finished box turns out to be:
- Paper grade and fiber source: Virgin fiber generally offers more strength per pound, while recycled fiber supports sustainability goals. Many boxes use a blend.
- Flute profile: A, B, C, E, and F flutes each offer different cushioning, print surface, and stacking characteristics.
- Adhesive quality and consistency: Uneven starch application creates weak spots that fail under stacking pressure.
- Converting equipment type: Flexo folder-gluers handle straightforward designs at speed; die cutters unlock complex shapes at the cost of an extra production step.
- Production volume and plant type: Full-line plants run raw rolls through finished boxes; sheet plants and sheet feeders cover narrower steps, which changes lead time and customization options.

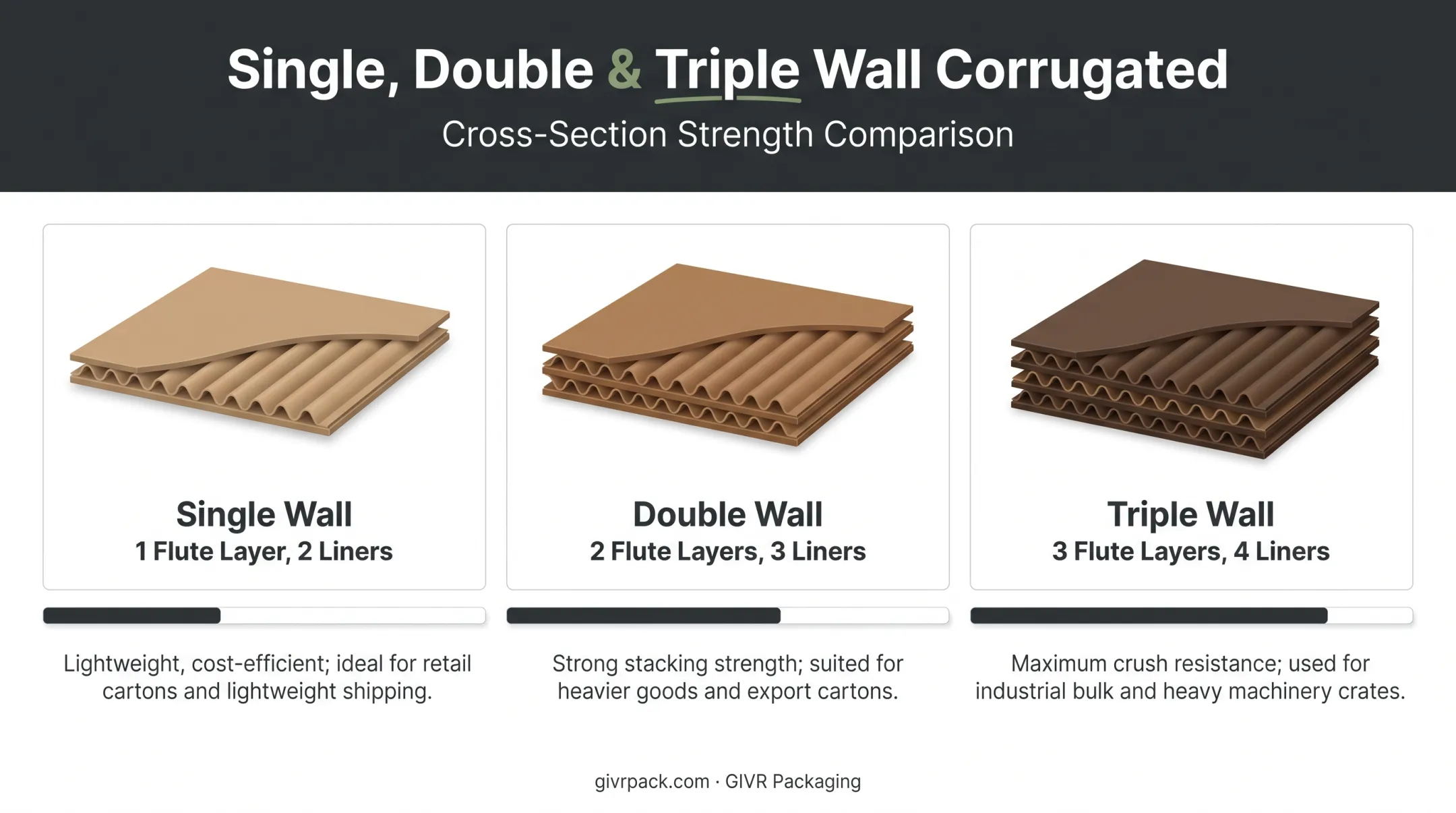

Wall count scales strength for the load:
- Single wall — one fluted medium between two liners
- Double wall — a third liner and second medium
- Triple wall — four liners and three mediums for heavy industrial loads
Common Issues, Misconceptions, and When Custom Manufacturing Isn't Needed
"Cardboard" vs. corrugated: Cardboard is a catch-all term people use loosely. Corrugated fiberboard specifically refers to the liner-plus-fluted-medium structure described above. Cereal boxes are paperboard, not corrugated. That distinction matters when you're specifying a box for shipping versus retail shelf presentation.

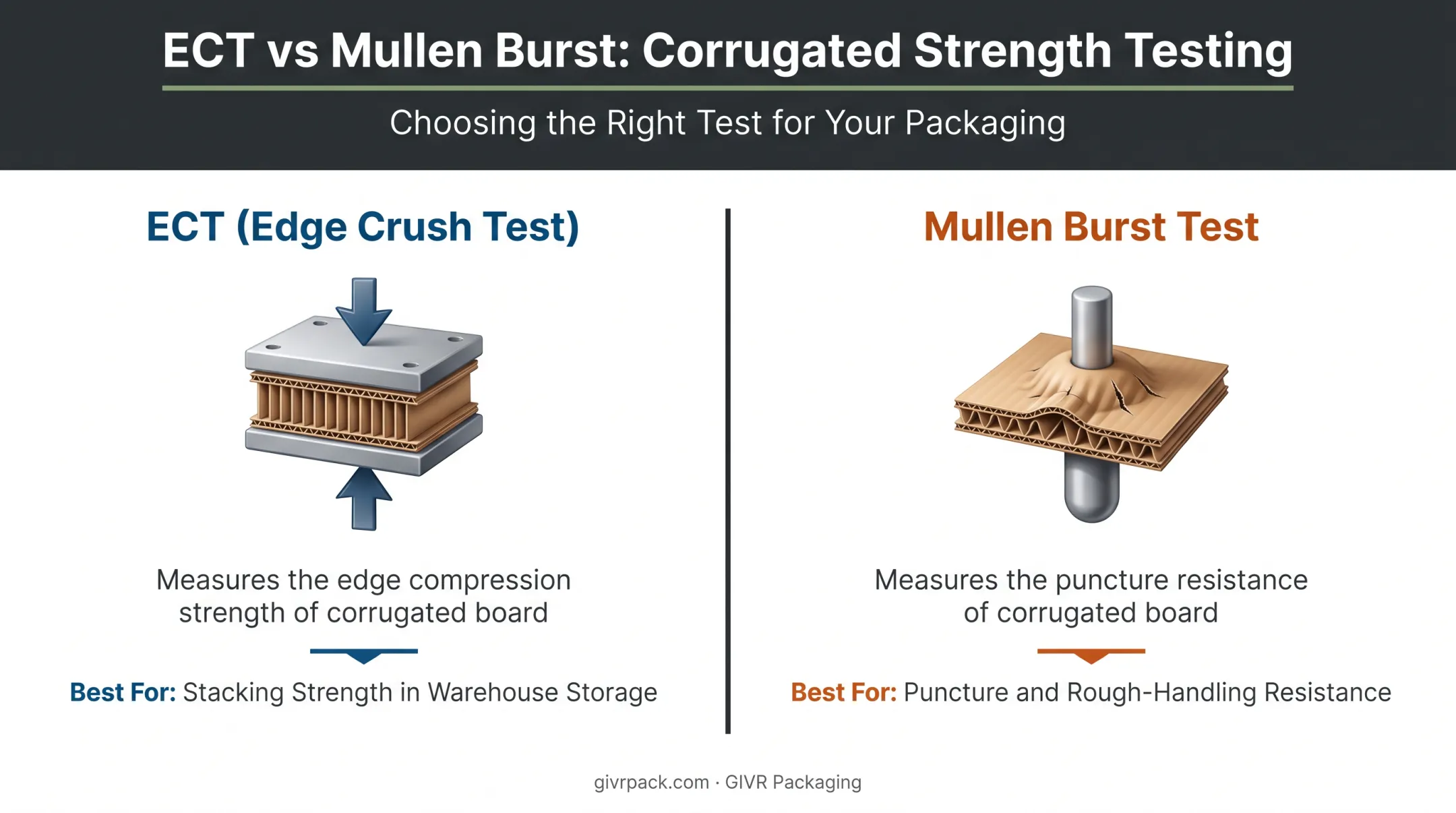

Strength ratings confuse a lot of buyers too. Two tests dominate the industry:
| Test | What it measures | Best for |
|---|---|---|
| ECT (Edge Crush Test) | Compressive strength of the board's edge | Stacking strength, warehouse storage |
| Mullen Burst | Force required to puncture the board face | Rough handling, puncture resistance |
According to Crown Packaging's comparison, ECT-rated boxes often weigh less than Mullen-rated equivalents because ECT ratings dropped the old minimum-basis-weight requirement. If your boxes get palletized and stacked, ECT is usually the more relevant number.
Mismatched flute profiles show up as crush or puncture in transit. An oversized flute might cushion well but collapse under stacking weight it wasn't designed for. A profile that's too thin for the product's weight leads to punctures on the way to the customer.
When custom manufacturing doesn't make sense: If you're shipping low volumes or your product fits standard dimensions, custom tooling adds cost without adding value. GIVR Packaging offers brown boxes in stock and custom sizes—from mini to jumbo—so smaller operations get solid protection without custom dies.
Signals you actually need custom tooling:
- Irregular product dimensions that waste space (and money) in stock boxes
- High damage rates with current stock packaging
- Branding requirements that stock boxes can't accommodate
- Volume large enough to offset tooling costs
Frequently Asked Questions
How are corrugated boxes manufactured?
Corrugated boxes are made by bonding a fluted paper medium between two linerboards on a corrugator, using starch adhesive and heat. The resulting board is then cut, printed, and folded into finished box shapes through converting equipment.
How much does it cost to manufacture a corrugated box?
Costs depend on board grade, size, print complexity, and order volume. Requesting a project-specific quote from a packaging partner gives you the most accurate pricing for your exact specs.
What is the difference between single wall, double wall, and triple wall corrugated?
Single wall uses one fluted medium between two liners, suited for standard shipping. Double wall adds a third liner and second medium for heavier loads, while triple wall stacks four liners and three mediums for industrial-grade strength.
Are corrugated boxes recyclable?
Yes, most corrugated boxes are fully recyclable and often made from recycled fiber. GIVR Packaging’s boxes are 100% recyclable, and its tree-planting partnerships support a carbon-negative model.
How long does it take to manufacture custom corrugated boxes?
Standard stock runs can ship within days. Custom prints, complex dielines, or large-volume orders typically take several weeks depending on design revisions and production backlog.
What determines the strength of a corrugated box?
Flute profile, wall count, and Edge Crush Test (ECT) rating together determine a box's stacking and crush resistance. Heavier products generally need higher ECT ratings and thicker wall construction.
