Neither problem is rare. A box that's too big invites products to shift and get bashed around. A box that's too small forces you to overstuff, straining seams and flaps until they fail mid-transit.
This guide gives you a standard corrugated box sizes chart, explains exactly how manufacturers measure those dimensions, and walks through picking the right size and strength for your product. One caveat before we dive into numbers: sizing charts are a helpful starting point, not a fixed industry standard. Every supplier's "standard" chart looks a little different.
Key Takeaways
- Box dimensions are always Length x Width x Height, measured from the inside
- "Standard" sizes vary by manufacturer — treat charts as reference points, not guarantees
- Flute grade and wall count determine strength, not the box's overall size
- Always add clearance for cushioning before matching a product to a box size
- Custom corrugated sizing often beats stock boxes on cost and brand presentation

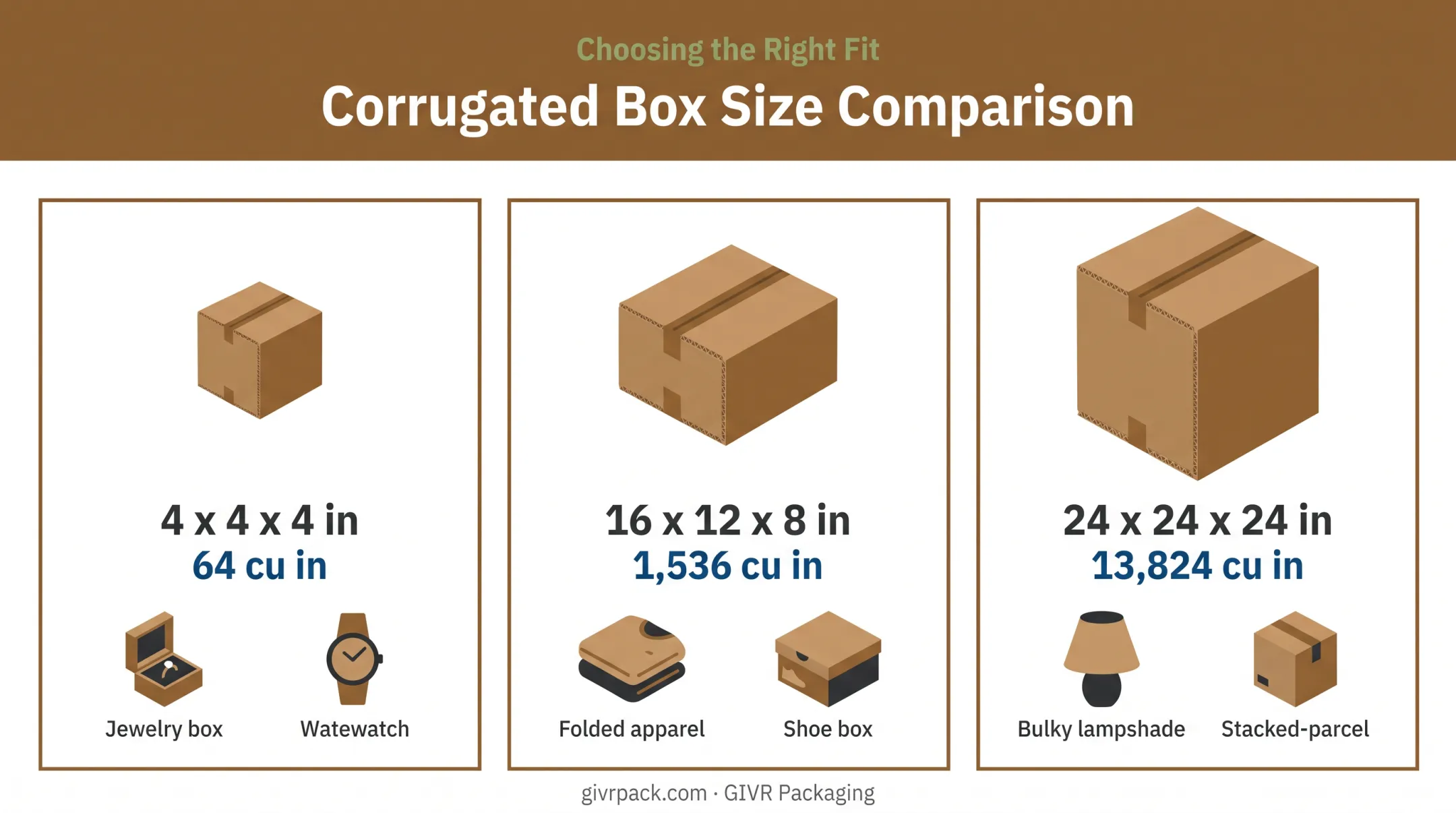

Standard Corrugated Box Sizes Chart
Common stock corrugated sizes, approximate interior volume, and typical uses:
| Category | Example Size (L x W x H) | Interior Volume | Common Use |
|---|---|---|---|
| Small | 4 x 4 x 4 in | 64 cu in | Single small item, jewelry, accessories |
| Medium | 16 x 12 x 8 in | 1,536 cu in | Multi-item e-commerce orders |
| Large | 24 x 24 x 24 in | 13,824 cu in (8 cu ft) | Bulky, round, or odd-shaped items |
Important: Published dimensions are almost always the box's usable interior space, not its outer footprint. A box listed at 24 x 24 x 24 inches will actually measure slightly larger on the outside once you account for board thickness.
What About the 24x24x24 Box?
A 24 x 24 x 24 inch corrugated box holds 13,824 cubic inches, or 8 cubic feet, of interior space. It fits large, round, or awkwardly shaped items that won't sit well in a standard rectangular carton: lampshades, large decor pieces, or bulky equipment.
That much cube usually needs single- or double-wall board to hold its own weight and resist crushing in handling. Check dimensional weight before defaulting to this size — a mostly empty 8-cubic-foot box can cost more to ship than the product is worth.
Stock sizes work well for standardized, predictable products. Brands with varied SKUs often outgrow generic charts and need sizes built around the catalog instead.
Small, Medium & Large Box Categories
- Small (under 12 in): Cosmetics, jewelry, small electronics, single-unit subscription items
- Medium (12–18 in): Apparel, multi-item orders, small appliances, gift sets
- Large (18 in and up): Bulky goods, multi-pack cases, oversized or irregular products
How Corrugated Box Dimensions Are Measured
Box dimensions follow a consistent convention: Length x Width x Height, always in that order.
- Length: longer side of the opening (the longer flap side)
- Width: shorter side of the opening
- Height: remaining dimension, with no flaps
Here's where confusion creeps in:
- Inside dimensions (ID): What manufacturers publish. This is the usable space for your product.
- Outside dimensions (OD): What carriers use for freight rating and what matters for pallet, dock, or shelf clearance.
Board thickness and flute type change the outside measurement even when two boxes share identical inside dimensions. A single-wall box and a double-wall box built to the same 24 x 24 x 24 inch interior will have different outer footprints. Double-wall board simply takes up more physical space.

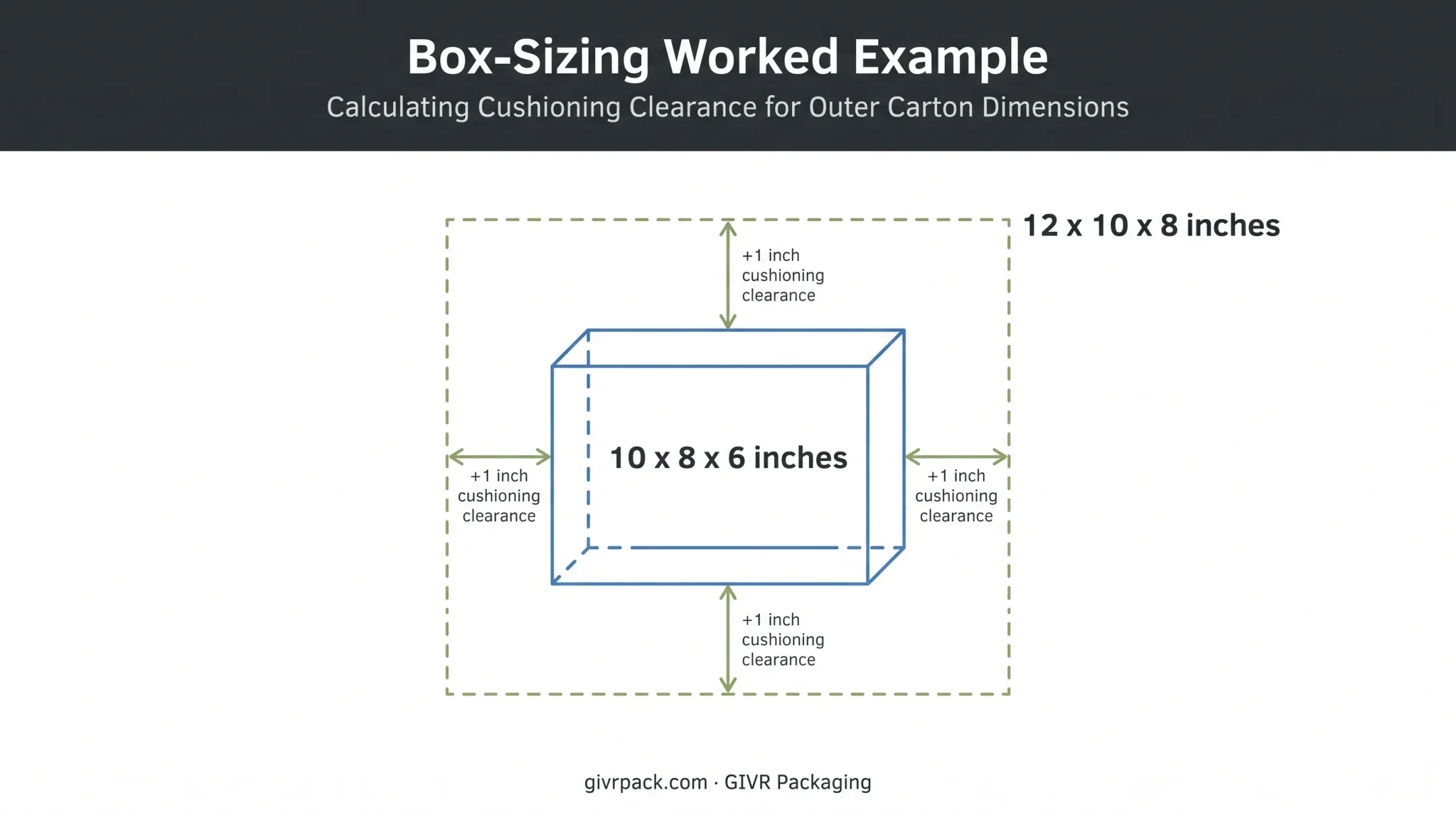

Worked example: Say your product measures 10 x 8 x 6 inches. Add 1 inch of cushioning clearance on each side for padding or void fill:
- Length: 10 + 2 = 12 inches
- Width: 8 + 2 = 10 inches
- Height: 6 + 2 = 8 inches
You're now shopping for a box with roughly 12 x 10 x 8 inch interior dimensions, not the bare product measurements.

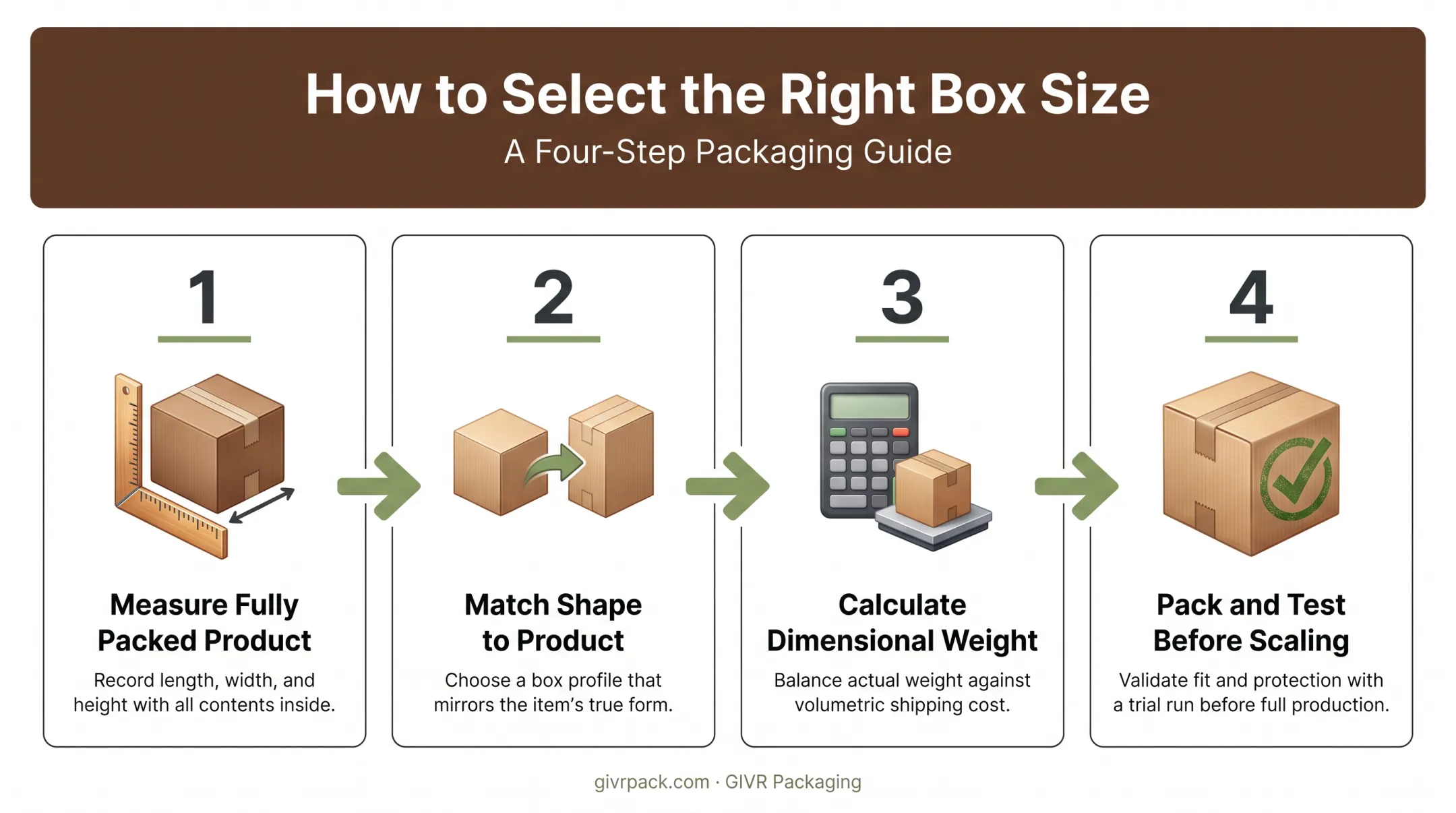

How to Choose the Right Corrugated Box Size
Step 1: Measure the Fully Packed Product
Measure the item with all inserts, dividers, and packaging materials included, not the bare product alone. Skipping this step is the single most common sizing mistake we see.
Step 2: Match Shape to the Product
- Cube-shaped products → cube boxes minimize void fill
- Flat or rectangular items → elongated or rectangular cartons
- Irregular shapes → custom sizing usually outperforms any stock option
Step 3: Calculate Dimensional Weight
Multiply length x width x height, then divide by your carrier's current DIM divisor. Divisors change year to year, so check your carrier's active rate guide before finalizing a size. A box that looks efficient on the shelf can still inflate shipping costs if its cube is larger than necessary.
Step 4: Pack and Test Before Scaling
Run a real sample shipment. Confirm the product fits without shifting, seams hold under normal handling, and flaps close fully.
Brands scaling past a handful of SKUs often move from generic stock sizes to custom-cut boxes once order volume or product variety grows. Once you factor in void fill and DIM savings, custom sizing is usually cheaper than it sounds.
Flute Grades and Corrugated Strength Basics
Flute type (A, B, C, E, F) affects cushioning, crush resistance, and print quality. Thicker flutes (A, C) cushion and stack better; thinner ones (E, F) give cleaner print surfaces and suit retail packs. Flute choice is separate from outer box size—a small box and a large box can share the same flute.

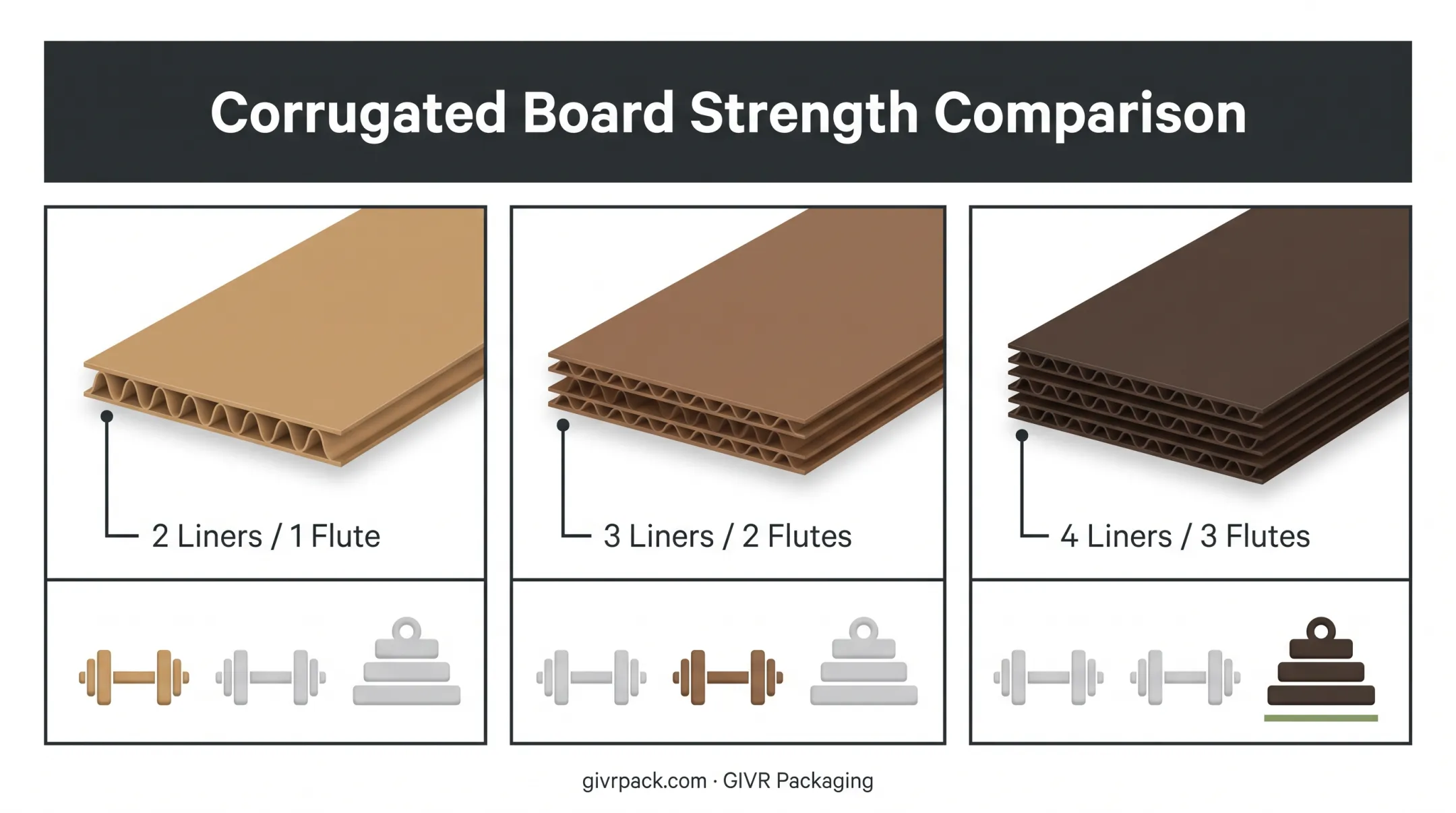

Wall count is what determines maximum load:
- Single wall: One fluted layer between two liners. Standard for most shipping.
- Double wall: Two fluted layers, three liners. Extra stacking strength.
- Triple wall: Three fluted layers, four liners. Strongest build for heavy industrial loads.
Don't assume a bigger box is automatically a stronger box. Match your chart size to a wall and flute combination appropriate for the product's actual weight and fragility. A large single-wall box shipping something heavy will fail long before a smaller double-wall box carrying the same load.
Corrugated vs. Cardboard: Understanding the Difference
People use "cardboard" loosely to describe almost any paper-based box, but the construction difference matters.
True corrugated fiberboard has a fluted medium sandwiched between two flat linerboard sheets. That fluted layer is what gives it strength and crush resistance. It's the reason corrugated is the go-to material for shipping.
Flat cardboard (or boxboard) is a single, thick sheet of paper with no fluted layer. It's suited to folded retail cartons, cereal-box-style packaging, or structural inserts that don't need to survive a delivery truck.
Choose based on the job:
- Corrugated when the product must withstand shipping and handling
- Boxboard folding cartons for retail presentation packaging that sits on a shelf
Choosing Between Stock and Custom Corrugated Box Sizes
Stock sizes get you moving fast with low minimums. Custom sizing takes more upfront work but pays off in three ways: less void fill, better brand presentation, and lower dimensional weight costs on every shipment.
Stock boxes make sense when:
- Your product dimensions are standard and unlikely to change
- You need boxes quickly with no design lead time
- Order volume doesn't justify tooling investment
Custom sizing makes sense when:
- Your product doesn't fit standard chart dimensions well
- You're paying for excess void fill or DIM weight regularly
- Brand presentation matters at unboxing
This isn't an either-or decision for every brand. GIVR Packaging offers both stock and custom-size brown corrugated boxes, ranging from mini to jumbo formats, so you can start with a stock size and move to custom once volume or SKU variety justifies it.
GIVR's structural engineers work through fit, protection, and cost together rather than treating box size as an afterthought. Every option runs on SFI- or FSC-certified, 100% recyclable materials.
If you're not sure whether your current packaging fits well, GIVR's free packaging audit reviews existing dielines for imperfect fit, damage risk, unnecessary cost, and waste.
Frequently Asked Questions
What are standard corrugated box sizes?
Common sizes span small (under 12 inches), medium (12–18 inches), and large (18 inches and up) categories. Exact dimensions vary by supplier, so always check the specific chart before ordering.
How big is a 24x24x24 corrugated box?
It holds 13,824 cubic inches, or 8 cubic feet, of interior space. It's typically used for bulky, round, or oddly shaped items and usually requires single or double-wall board for adequate strength.
What is the strongest type of corrugated box?
Triple-wall corrugated is the strongest construction available. Its three fluted layers and four liner sheets give it the load capacity needed for heavy, industrial-grade shipping.
What is the difference between a cardboard box and a corrugated box?
True corrugated fiberboard has a fluted medium between two liners, giving it shipping-grade strength. Flat cardboard (boxboard) is a single thick sheet, better suited to folded retail cartons than shipping.
How do I know what size box I need?
Measure your product fully packed, including inserts and cushioning material, then add clearance before matching it to a chart size. Testing a sample shipment confirms the fit before you order at scale.
Are box sizes measured inside or outside the box?
Manufacturers typically publish inside dimensions, which is the usable space for your product. Carriers, however, rate shipments by outside dimensions, so check both before finalizing your box.
